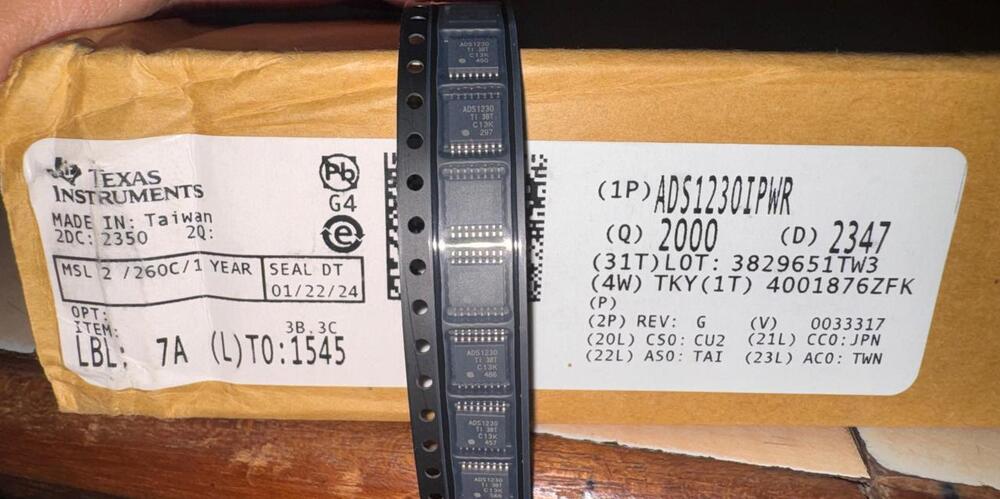

ADS1230IPWR TEXAS

Name: ADS1230IPWR TEXAS
Brand: RAJRATAN SEMICONDUCTORS
Price: 50 INR
Availability: InStock

Price 50 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

ADS1230IPWR TEXAS Specification

Features
Low noise, wide supply voltage range, small package, on-chip oscillator, self-calibration

Operating Temperature
-40C to +85C

Input
Differential input

Usage
Precision Sensor Measurement, Load Cell, and Temperature Measurement Applications

Output
Digital output (serial interface)

Sensors Specification
Compatible with bridge sensors (e.g., load cells)

Components
Single-chip ADC, no additional components integrated

Power Supply
2.7V to 5.5V

Interface
Serial/2-wire interface

Resolution
24 bits

Power Source
External DC supply

Product Type
Integrated Circuit (IC) / ADC Converter

Application
Industrial and consumer instrumentation, weighing scales, temperature monitoring

Rated Voltage
5.5V max

Supply Voltage
2.7V to 5.5V

Size
TSSOP-16 package

Dimension (L*W*H)
5.0 mm x 4.4 mm x 1.0 mm (TSSOP-16)

Function
24-Bit Analog-to-Digital Converter (ADC)

Color
Black (IC body color)

Weight
N/A (SMD IC, negligible weight)

Current Rating
~1600 A (operating current)

Thickness
Approx 1.0 mm (TSSOP package)

Frequency
Sampling Rate: 10 SPS or 80 SPS

Ordering Code
ADS1230IPWR

Package Type
TSSOP-16

Date Code
2009 (as per label)

Moisture Sensitivity Level (MSL)
MSL 1 (unlimited floor life at 30C/85% RH)

Marking Code
1230I

Batch Number
7247 (as shown on label)

Mounting Type
Surface Mount (SMD)

ESD Sensitivity
Class 2

RoHS Compliant
Yes

Pin Count
16 pins (TSSOP-16)

About ADS1230IPWR TEXAS

Experience the exceptional ADS1230IPWR TEXAS, a top-rated 24-Bit Analog-to-Digital Converter (ADC) designed for dazzling precision in sensor measurement, load cell, and temperature monitoring applications. With a radiant TSSOP-16 surface-mount package, RoHS compliance, and unrivaled MSL 1 reliability, it's built for both industrial and consumer instrumentation. Its fresh low-noise performance, wide supply voltage range (2.7V-5.5V), built-in oscillator, and self-calibration set it apart. Grab yours now for stellar results in weighing scales and measurement systems. Marking Code: 1230I, Ordering Code: ADS1230IPWR.

Exceptional Applications & Advantages

The ADS1230IPWR TEXAS shines in weighing scales, temperature monitoring, and industrial or consumer instrumentation. Its outstanding benefit lies in highly accurate measurements essential for process automation. Designed with a wide operating temperature range and compatibility with bridge sensors, it caters to diverse environments, including factories, labs, and commercial facilities. Its small footprint and robust digital output ensure versatility across a host of sensor-based applications, consistently delivering top-tier results wherever precision counts.

Sample Availability & Swift Delivery

Samples of the ADS1230IPWR TEXAS are readily accessible, ensuring potential buyers can evaluate its performance before a full outlay. With an impressive supply ability, bulk and trade orders are efficiently fulfilled. Each unit is securely packaged (TSSOP-16 format) and dispatched promptly to ensure safe delivery. Our streamlined logistics prioritize rapid dispatching and safe handling, minimizing any delivery delays, so you receive your batch number-verified ICs swiftly and in optimal condition.

FAQ's of ADS1230IPWR TEXAS:

Q: How does the ADS1230IPWR TEXAS enhance precision in sensor-based applications?

A: It features a 24-bit resolution with low noise, a self-calibrating ADC, and compatibility with bridge sensors, ensuring exceptional measurement accuracy across various conditions.

Q: What are the ideal application areas for the ADS1230IPWR TEXAS?

A: It's perfect for precision sensor measurement, load cell systems, weighing scales, and temperature monitoring in industrial and consumer instrumentation sectors.

Q: When can I expect delivery after placing an order for this component?

A: Dispatching typically occurs promptly after order confirmation, with reliable delivery timelines based on your shipping location and order size.

Q: Where is the ADS1230IPWR TEXAS most commonly implemented?

A: It is widely used in factories, laboratories, commercial weighing systems, and any setting demanding high-accuracy sensor data conversion.

Q: What process is followed to ensure safe packaging and shipment of this product?

A: Each ADS1230IPWR unit is packaged in secure TSSOP-16 trays or reels, batch number labeled, and shipped with protective measures to safeguard integrity.

Q: How does sample availability benefit potential users or buyers?

A: Sample access allows users to thoroughly evaluate functionality and compatibility in their specific applications before making substantial procurement outlays.
